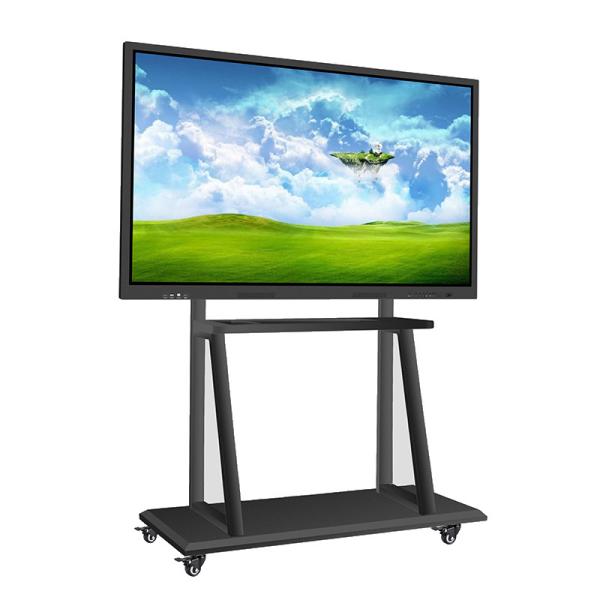

NEW 4K UHD 86" Dual System Conference IR Touch Kiosk Support Wireless Mirroring

Ask Lasest Price
Brand Name :	XUNSHINA
Model Number :	XS-C86BH
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	2000 PCS per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

NEW 4K UHD 86" Dual System Conference IR Touch Kiosk Support Wireless Mirroring

Product features:

1. Equipped with front buttons, which is convenient for quick switch on and off, one-key energy saving and other operations;

2. If the machine is under normal use, the device can automatically recognize and switch to the corresponding VGA/HDMI signal source channel, and can return to the previous channel after disconnection;

3. Android hotkey function: floating shortcut keys can be placed anywhere on the Android desktop;

4. Support multi-point touch screen, when paired with a computer motherboard as a dual-system all-in-one machine, the touch frame can be seamlessly switched between dual systems (windows/Android); in the Android interface, it can detect the on-off status of the PC motherboard for remote control/touch Control computer switch machine;

2.1 Screen parameters

86inch parameters
Size	86”
Dimension	1953.31164.591.7mm
Display area	1895.04mm(H)×1065.96mm(V)
Pixel pitch	0.4935 mm x 0.4935 mm
Resolution	3840(H)×2160(V)(UHD)
Brightness	350cd/㎡
Contrast ratio	1100:1(Typ.)
Viewing angle	178°,178°
Response time	10ms
Color depth	10 bit/1.07 Billion
Backlight	DLED
Life span	³50000 hrs
Speaker	2*8Ω10W
Power consumption	≦380W
Power supply	100V-240VAC,50/60Hz

2.2 Mainboard parameter

Mainboard parameters
Solution	MSD648
CPU	ARMCortex-A53 quad-core
RAM	2GB
ROM	16 GB
System	Android Version 6.0.0
Interfaces	WiFi3,HDMI in2,AV in1,AV out1,YPBPR1,VGA1,PC audio1,USB4(front2), SD card slot1,RS2321,RJ451,Earphone audio out1,Coaxial audio1,touch USB*1
Audio	Audio format support: WMA, MP3, M4A (Definitely unsupported formats: SONY ATRAC3, Dobly HD)
Video	RM, MPEG2, MPEG4, H.265, RMVB, MOV, MJPEG, VC1, FLV (Definitely unsupported formats are: MSVS/CRAM, MP42, GMC, IV32, RLE, CVID, RV20, H.264@3840*2160 )
Picture	Support JPEG, BMP, PNG and other image format and support rotation/slide show/picture zoom function

2.3 Pluggable built-in OPS computer configuration (optional)

CPU	Intel I3/I5/I7 optional
Mainboard	Intel H81/H110/HM86/A77 optional
RAM	4GB/8GB optional
Hard disk	500GB/1TB HHD/128GB SSD optional
WiFi	Support 2.4G
OS	Windows7/ Windows10
Working temperature	0~50℃

2.4 Touch parameters

Touch embedding method	Built-in integrated, not external
Writing mode	Fingers, touch pens or other non-transparent objects with a diameter of not less than 5mm
Touch point	≥10 points
Touch accuracy	The middle area is less than 1mm and the edge is less than 3mm
Responding speed	＜10ms
Touch resolution	32768*32768
Touch times	Unlimited number of theoretical times
Transmission speed	480Mbps
Scan frequency	＞100Hz/S
Interface type	Type A USB male +UATR
Driver	System automatic identification, no drive
OS	Support windows,Android,Mac OS,Linux
Working voltage	4.75V~5.25V
Working current	≤300mA
Operating temperature	-10℃~50℃

Optional accessories:

Dimension:

NEW 4K UHD 86" Dual System Conference IR Touch Kiosk Support Wireless Mirroring
